FID - Flame Ionization Detector
41
  • Hydrocarbon Selective
  • Robust, Linear, Stable
  • Detects Down to 1ppm
  • Unique Ceramic Ignitor can run HOT continuously to keep flame lit
The Flame Ionization Detector is the most commonly used GC detector, responding linearly from its minimum detectable quantity of about 100 picograms to almost 100%.
The FID responds to any molecule with a carbon-hydrogen bond, but not at all, or poorly, to compounds such as H2S, CCl4, or NH3. The FID response is very stable from day to day, and is not susceptible to contamination from dirty samples or column bleed.
Our FID employs a unique ceramic ignitor which can run hot continuously, immediately re-igniting the flame even when presented with large water injections or pressure surges from column backflush.

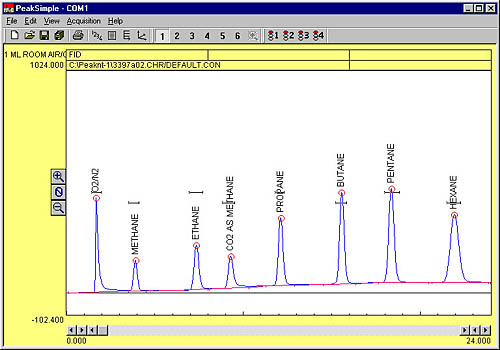

The chromatogram at left shows 250ppm C1-C6 hydrocarbons (methane through hexane) standard as detected by the SRI FID. CO2, also at 250ppm, is converted to methane by the Methanizer accessory in the jet of the FID detector.
8690-0010
FID detector
£1,824.00
8690-0081
Methanizer accessory for low level CO & CO2
£1,360.00
8690-0070
Optional 120VAC 60Hz built-in "whisper quiet" air compressor
£552.00
8690-2270
Optional 220VAC 50Hz built-in "whisper quiet" air compressor
£552.00
