NEW! Six Shooter Auto Injector for GC
NEW!
  • Inject Liquid or Gas Samples
  • Holds up to Six Sample-filled Syringes
  • Easily Detaches from the GC for Shipping
  • Built-in Air Compressor Powers Pneumatic Action
  • For use with SRI 8610 GCs

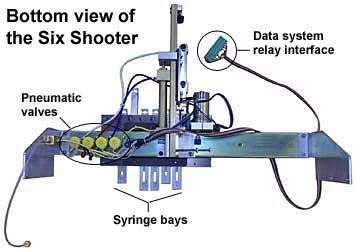

Automate up to six syringe injections with the SRI Six Shooter Auto Injector. This GC injector accessory accommodates 10�L liquid syringes and 1mL gas syringes. The pneumatic actions are controlled by relays through the PeakSimple data system, and may be entered into an Event Table for automation or activated manually. The entire unit is mounted on the front of the GC with six screws. It can be quickly detached for shipping, or for use on another SRI 8610GC; it screws into the same holes used to attach the front control panel.

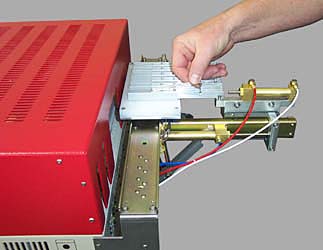

Up to six syringes containing gas or liquid samples are loaded into the Six Shooter. The entire injection sequence is controlled by relays through the data system. The relays and their timed activation may be entered into a PeakSimple Event Table for automation. Or, each relay may be manually toggled with a mouse click.
Time
   Event
0.000
0.125
0.150
0.175
0.200
0.600
11.000
12.000
12.200
12.220
 Zero detector signal
B ON: Position syringe against injection port
C ON: Depress syringe plunger to inject
C OFF: Retract syringe plunger depressor
B OFF: Retract syringe bay
F ON: Pre-column heat ON
F OFF: Pre-column heat OFF
E ON: Advance to positon the next syringe bay
D ON: Jump
D OFF: Jump

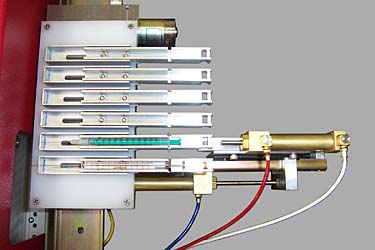

In the picture shown at right, a 1mL gas syringe is queued up at the GC injection port.

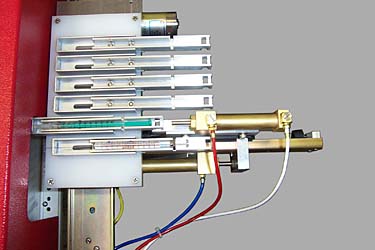

Next, the Six Shooter moves the syringe forward toward the injection port.

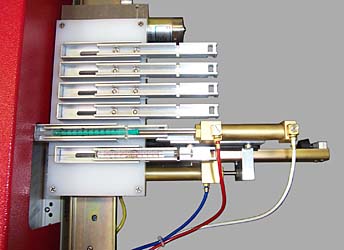

Third, the Six Shooter injects the sample by depressing the syringe plunger. Next, the auto-injecter will retract the syringe, and step forward to the next syringe, as controlled by the operator.

8690-0056
Six-Shooter Auto Injector for GC
$ 2,995.00
