GC Detector Overview (16 types)
44
  • Up to 6 detectors can be installed on one GC
  • Several detectors can be run in series for multiple chromatograms from one injection

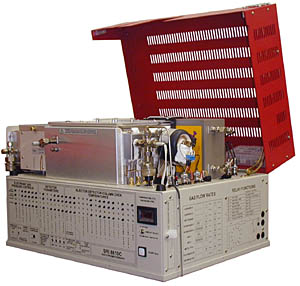

This particular 8610C GC system is equipped with ECD, FID, FPD, PID, and DELCD detectors. All five detectors may be operated and the results viewed simultaneously with our six channel USB PeakSimple data system.


SEVENTEEN DETECTOR TYPES TO CHOOSE FROM

Each detector is equipped with a thermostatted heater block for temperature stability, internal amplifier electronics, and electronic pressure controlled (EPC) support gases, such as hydrogen and air for the FID detector. All detectors require factory installation. Prices listed are for the detector mounted on an SRI GC chassis.

1.
 CCD - Catalytic Combustion Detector
2.
 TCD - Thermal Conductivity Detector
3.
 FID - Flame Ionization Detector
4.
 DELCD - Dry Electrolytic Conductivity Detector
5.
 FID/DELCD - combination Flame Ionization Detector and Dry Electrolytic Conductivity Detector
6.
 HID - Helium Ionization Detector
7.
 PID - Photo Ionization Detector
8.
 NPD - Nitrogen-Phosphorus Detector
9.
 NPD/DELCD - combination Nitrogen-Phosphorus Detector and Dry Electrolytic Conductivity Detector
10.
 TID - Thermal Ionization Detector
11. FPD - Flame Photometric Detector
12.
 FPD/FID - combination Flame Photometric Detector and Flame Ionization Detector
13.
 Dual FPD - dual wavelength for simultaneous sulfur and phosphorus response
14.
 FID dual FPD - combination dual Flame Photometric Detector and Flame Ionization Detector
15.
 ECD - Electron Capture Detector
16.
 RGD - Reduction Gas Detector
17. ASD - Aromatic Selective Detector

Detector types are selected by the user depending on the particular measurement application, detection limit required, matrix interferences, and/or regulatory guidelines. Some rare combinations of detectors may conflict due to space limitations.
