Thermal Desorber
60-61

  • Volatile & Semi-volatile compounds in Solid Matrices
  • Mounts in the Valve Oven on the 8610C GC
  • High Temperature & High Sensitivity
  • Manually Actuated 10-port Valve
  • No solvent extraction required
  • Simple to Use

The SRI Thermal Desorber permits volatile and semi-volatile compounds in soil, or other solid matrices, to be injected and analyzed with little or no sample preparation, and with very high sensitivity. With the Thermal Desorber, no solvent extraction is required. This is a major convenience for field operations, and helps save on costs. Little operator skill is needed, and 4-10 analyses can be run per hour, depending on specific requirements.

Because of the large sample size—up to one gram, an analyte present in the soil at 1ppm desorbs 1000 nanograms onto the GC column. This results in detection limits in the ppb range for most compounds. Sandy soil can typically be desorbed with no sample preparation at all. Clay soil is first mixed with sodium sulfate granules to break the clay into a fine powder coating the granules, then the clay and sodium sulfate mix is desorbed.

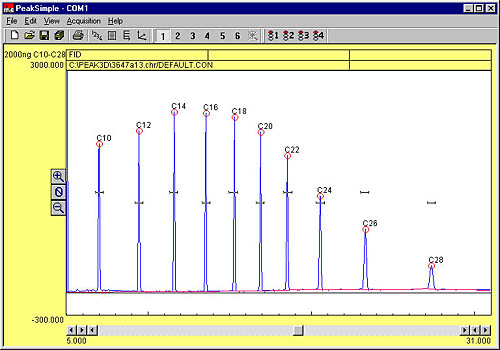

This chromatogram is from a GC with a Thermal Desorber and an FID detector. Synthetic diesel range samples like this are used to verify complete desorption. Sample: 2000ng synthetic diesel range organics desorbed from soil.

Up to one gram of soil is loaded into a re-usable glass tube, and secured in place with plugs of glass wool. The tube is then inserted into the hot (275oC) thermal desorber fitting, which is mounted in the heated valve oven compartment on the 8610C.

Soil samples can typically contain 20-50% water. FID or FID/DELCD detectors are commonly used with the Thermal Desorber, because the SRI FID automatically re-lights the flame after a large water peak. The Thermal Desorber + FID/DELCD configuration is perfect for detecting PCBs, pesticides, PAHs, JP-4, kerosene, and diesel in soil. Due to the extreme selectivity of the DELCD detector, PCBs can be discriminated even in the presence of massive hydrocarbon contamination.

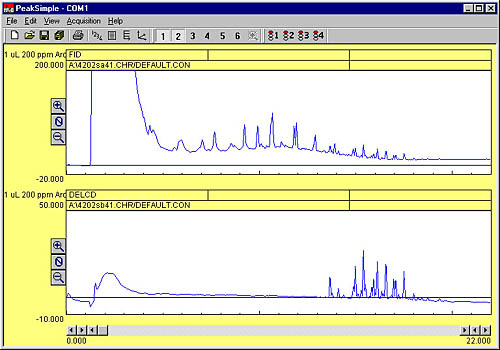

These two chromatograms show the analysis of PCB 1254 standard in diesel oil with our PCB GC system, which is equipped with a Thermal Desorber and an FID/DELCD combination detector. The FID shows the diesel hydrocarbons and the PCBs, but the PCB peaks are obscured by the diesel peaks. In contrast, the DELCD shows the PCBs only, revealing what was essentially hidden in the FID chromatogram.

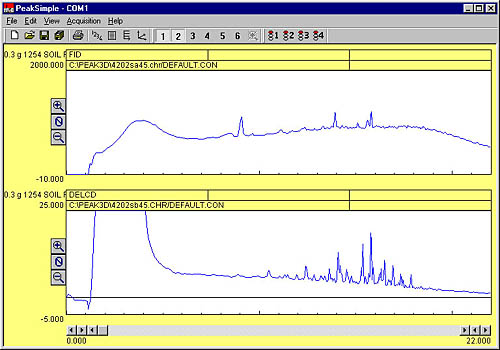

This set of chromatograms show the analysis of a real world standard: 0.3 grams of soil from a contaminated site. This real world standard is certified by NIST to contain 1.34ppm PCBs. The FID shows a large hydrocarbon matrix which is pre-combusted in the FID flame prior to reaching the DELCD, which shows a clean PCB 1254 chromatgram. Pre-combustion of the sample by the FID protects the DELCD from hydrocarbon contamination.

8690-1088
Thermal Desorber on 8610C GC including 10 re-usable glass desorber tubes
£3,176.00
8690-1087
10-pack re-usable ground glass desorber tubes
£96.00
