HRVOC GC System
27
  • Sample Dryer
  • CryoCooled Peltier Trap
  • 10-port Gas Sampling Valve
  • Flame Ionization Detector (FID)
  • 50 Meter RTX Alumina Column
  • 1 Channel PeakSimple Data System
  • Built-in "whisper quiet" Air Compressor
  • Optional Online Liquid Membrane Sampler/Sparger
    ...on the compact 8610C chassis
The HRVOC GC system is designed for analytes recently targeted by the Texas Commission on Environmental Quality (TCEQ). Ethylene, propylene, 1,3-butadiene and butenes have been found to contribute to high ozone observed in the Houston area. It is believed that substantial emission reductions of these four compounds are likely to have a high impact on the rapid ozone formation and transient high ozone in the area. To that end, the TCEQ requires that facilities in the Houston/Galveston area with a vent gas sream, flare or cooling tower heat exchange system that emits HRVOCs (or has the potential to emit HRVOCs) continuously monitor their systems for composition and flow.

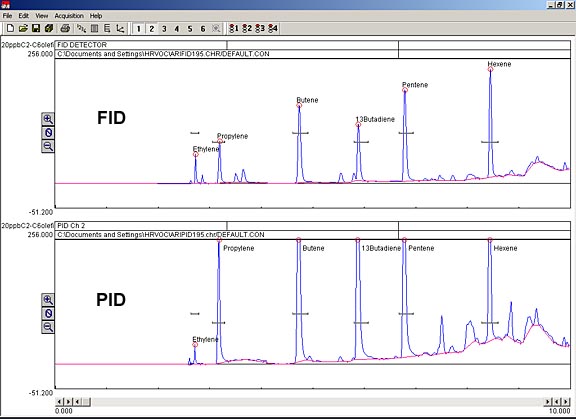

The chromatograms above are from an HRVOC GC system equipped with FID and PID detectors. The sample was 20ppb C2-C6 olefins + 1,3-butadiene. The sample gas stream was trapped with the CryoCooled Peltier Trap at -10oC for 20 minutes.
8610-5800
 HRVOC GC System
£14,512.00
8610-5810 HRVOC GC with optional PID detector & 4 channel data system
£18,864.00
8690-0087 Online membrane sampler/sparger for cooling tower water
£3,176.00
