Model
210 HPLC System - DISCONTINUED IN 2008
|
92-95
|
|
|

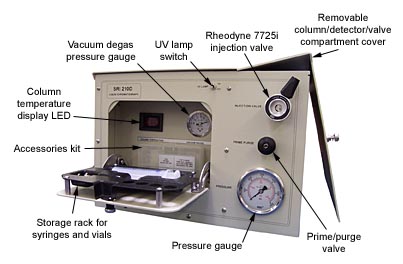

| Excellent for both quality control and educational applications, the SRI Model 210 is a complete, entry-level HPLC system in an economical package. Everything you need is inside the compact, rugged, field portable chassis. Most controls used during analysis are conveniently located in a compartment on the right-hand side of the 210. This compartment is accessed by loosening two captive thumbscrews and lifting off the cover. |  |

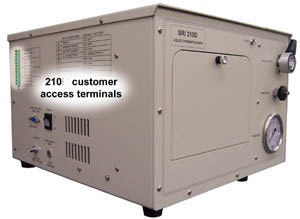

| The 210 comes standard with a fixed wavelength UV detector and a built-in, single channel PeakSimple data system. If you choose to add the optional Conductivity detector, you can toggle between it and the UV detector on the single channel data system. If both detector signals need to be viewed simultaneously, upgrade to the four channel serial data system or six channel USB data system. An additional benefit to the data system upgrade—there will be two to four extra channels available for external detectors, which can be easily connected to the customer access terminals on the left-hand side of the 210. |  |
 |

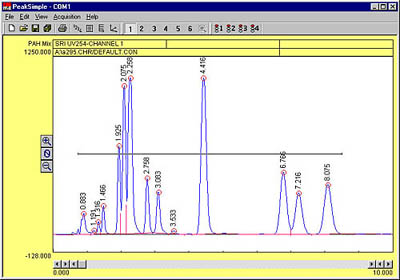

The UV detector operates at the standard fixed 254nm wavelength. This chromatogram shows the analysis of a mix of Polycycylic Aromatic Hydrocarbons by the UV detector in the Model 210. |
 |
 |
|

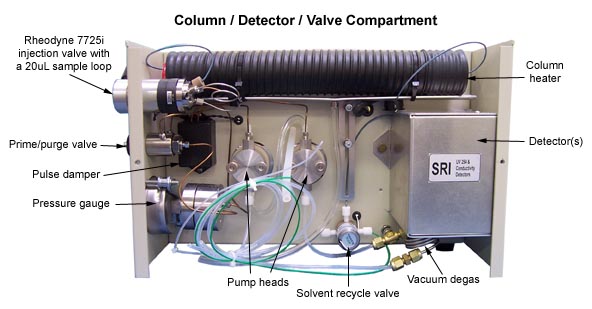

Slide
the column heater up to install a column.
|
|
 |
The solvent recycling valve is a huge convenience that saves time, money, and disposal costs because it allows the user to recycle the solvent when no peaks are eluting. The solvent recycling valve can also be used as a single sample fraction collector. Using a PeakSimple Event table, the solvent recycling valve can be switched at any time during the analysis to divert the detector effluent from the waste bottle to a sample vial when the peak of interest exits the detector. |  |
| Use the PeakSimple Event table to turn the solvent recycle valve ON at any time. |
| The handy storage compartment built into the front of the 210 holds your injection and priming syringes, spare parts, and a few vials securely during shipping. Keep your HPLC tools with your HPLC. |
 |
|
|
Gradient Upgrade Unlike other HPLC systems, the SRI Model 210 gradient upgrade can be performed by the user, in the field, in about an hour. All the necessary wiring is already included with the base isocratic system. All the upgrade requires are just a few screws and plumbing connections to add the second pump head and circuit board. |
||||||||||||||||||
|
|
| The 210 is field portable. The entire HPLC can run off the 12 volt power from the cigarette lighter in your vehicle. Whether you are performing analyses in the jungle, desert, or city, the 210 can go with you. It can be transported around the world in the rugged re-usable shipping container (shown above), which is small enough to travel as airline baggage. |
 |
|
 |
The
Model 210 is designed for easy one-person transport in the field.
|
|
|
0210-1000
|
Model 210 Isocratic HPLC system with a single channel serial PeakSimple data system |
|
|
0210-1001
|
Optional Conductivity Detector |
|
| 0210-0300 | Upgrade to Binary Gradient |
|
| 0210-1300 | Binary Gradient HPLC system with single channel serial PeakSimple data system |
|
| 0210-4000 | Model 210 Isocratic HPLC System with four channel serial PeakSimple data system |
|
| 0210-6000 | Model 210 Isocratic HPLC System with six channel USB PeakSimple data system |
|
| 0210-3600 | Optional 360nm photodiode for UV detector |
|
| 0210-1500 | Column: 15cm x 4.1mm, 5 micron C18 |
|
| Model 210 HPLC System - DISCONTINUED IN 2008 |
92-95
|
