Capillary FID GC System
4
  • FID Detector
  • 30 meter Capillary Column
  • Built-in, "whisper quiet" Air Compressor
  • 1 Channel PeakSimple Data System
    ...on the compact 8610C chassis
  The Capillary FID GC System is a state of the art, general purpose temperature programmable GC in a compact, low-cost package. It includes everything you need to separate and detect fuels and other hydrocarbon compounds. In addition to a wide range of general gas chromatography applications, the Capillary FID GC System is excellent for both environmental testing and quality control applications.
The 30 meter capillary column can efficiently separate hydrocarbons up to C40+. The On-column injector (for 0.53mm capillary columns) is good for liquid and gas sample with high and low boiling analytes—no boiling point discrimination. The built-in, "whisper quiet" air compressor provides a nearly silent supply of combustion air for the FID detector, so an air cylinder is not required for most applications. The optional Split/Splitless injector upgrade allows for the use of 0.32mm, 0.25mm and smaller capillary columns. Our H2-50XR hydrogen generator can supply enough hydrogen for carrier gas and FID combustion gas, including enough to operate a Split/Splitless injector for short periods.

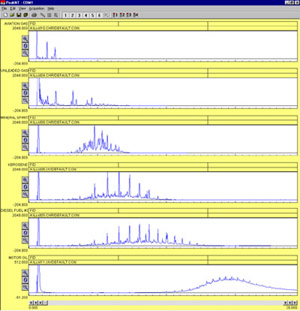

The six chromatograms shown at right resulted from analyzing various fuels with one of our Capillary FID GC Systems. The characteristic hydrocarbon range and fingerprint of each fuel is revealed. All six runs were performed under identical conditions.
8610-5400
Capillary FID GC System
£7,720.00
(VOLTAGE: for 110VAC, use 8610-5400-1; for 220VAC, use 8610-5400-2)
Options & Upgrades: additional detectors with 4 channel serial or 6 channel USB PeakSimple data system, Split/Splitless and PTV injectors, Methanizer, gas sampling valves, additional columns, H2-50XR hydrogen generator
Capillary FID GC System
4
